Overview - Hardware

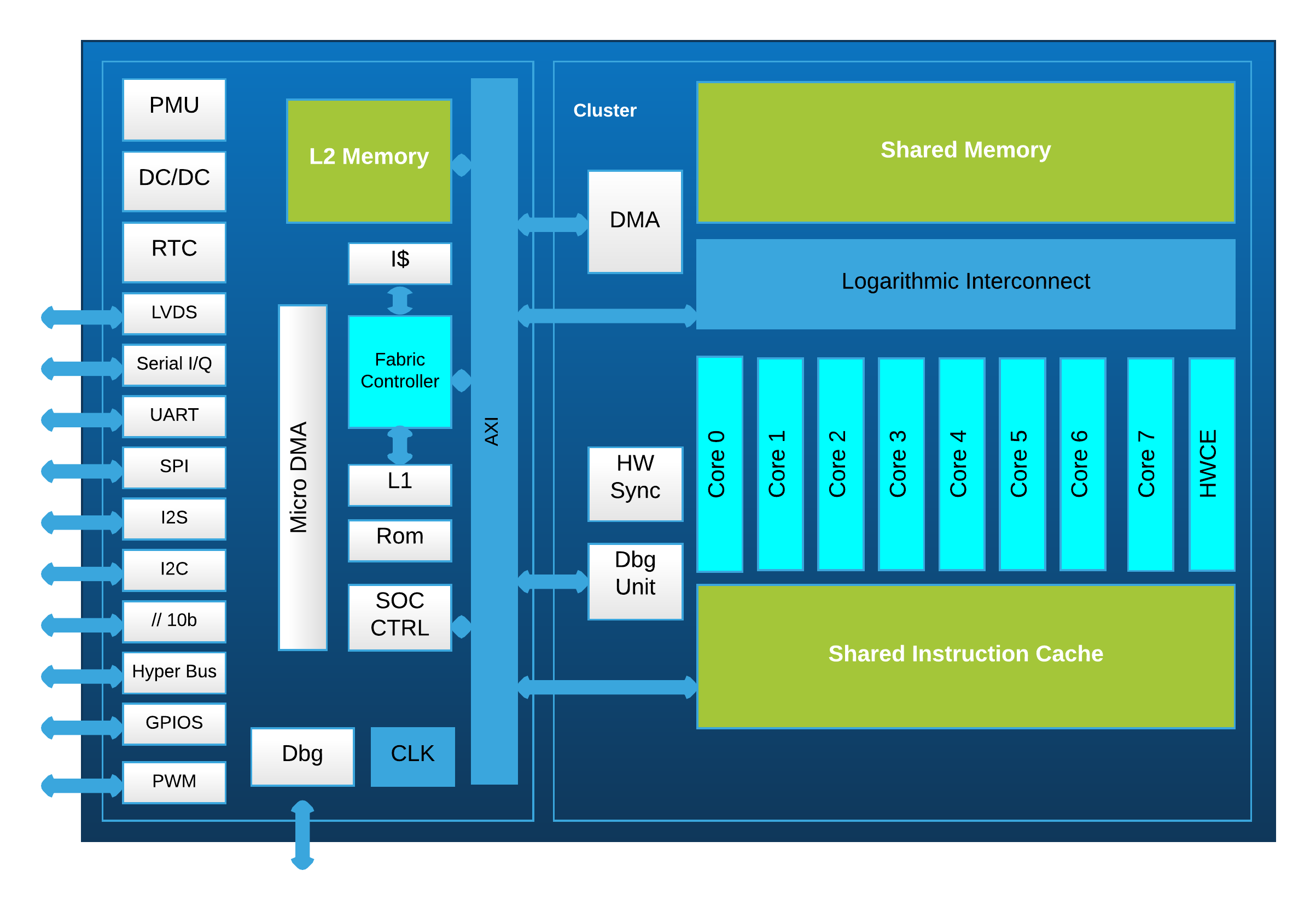

Platform

• 1 + 8 high-performance cores: extended RISC-V ISA
  • 1 high performance micro-controller referred to as Fabric Controller or FC (150 MHz @ 1.0V; 250MHz @ 1.2V)
  • 8 cores that execute in parallel for compute intensive tasks referred to as Cluster (87 MHz @ 1.0V; 170MHz @ 1.2V)
  • Ultra low Power : maximum 25mA @ 1.0V
• Memories
  • A level 2 Memory (512KB) for all the cores
  • A level 1 Memory (64 KB) shared by all the cores in Cluster (0 wait state memory access)
  • A level 1 memory (8 KB) owned by FC (0 wait state memory access)
  • Memory Protection Unit
  • HyperBus Interface to connect external HyperFlash or HyperRAM
• Clock, reset and supply management
  • 1.6V to 3.6V power supply and I/Os
  • Programmable (0.9V to 1.3V, 50mV steps) Internal Regulator
  • 2 independent FLLs, 1 for FC and 1 for Cluster
  • 1 x 32.768kHz RTC
  • Single 32.768kHz crystal for RTC and FLLs
• Low power
  • Sleep, Deep Sleep, Retentive states
• Debug Mode
  • JTAG interface
• DMA
  • A multi-channel 1D/2D cluster-DMA controls the transactions between the L2 Memory and L1 Memory
  • A smart, lightweight and completely autonomous DMA (micro-DMA) capable of handling complex I/O scheme
• I2S: Standard I2S interface for connecting digital audio devices
  • Up to 4 digital microphones (PDM or PCM)
• CPI: Parallel interface for connecting a camera
  • 8 bits interface
  • HSYNC, VSYNC, PCLK
• Up to 5 timers
  • 4 x 32 bit timers each with up to 4 PWM outputs
  • 1 x 32 bit SysTick timer
• Communication Interfaces
  • Up to 2 I2C
  • 2 x SPI master
  • 1 x SPI slave
  • 1 x UART
• Up to 32 fast I/O ports
  • Different Voltage I/O banks
  • Interrupt on Change
• A HardWare Convolution Engine (HWCE) for Convolutional Neural Networks based applications
• LVDS interface
  • A 128 Mb/s interface for RF
