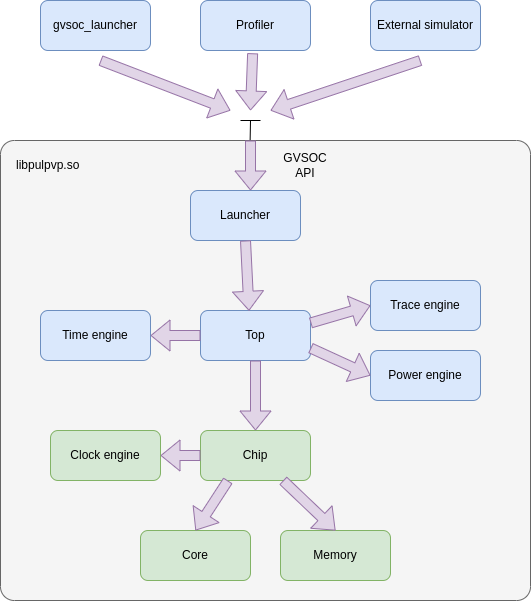

GVSOC Core Engine Architecture

Top-level Flowchart

flowchart TB
    subgraph l1 ["Layer 1: Python Configuration"]
        direction TB
        A1["Target Definition <br/> (Target class)"] --> A2
        A2["Component Tree"] --> A3
        A3["Simulation runner"]
    end

    subgraph l2 ["Layer 2: JSON"]
        direction TB
        B1["gvsoc_config.json"]
    end

    subgraph l3 ["Layer 3: Simulation"]
        C1["Launcher<br>(gv::Controller)"]
        C2["Top Level Interface<br>(vp::Top)"]
        C3["Trace Engine<br>(vp::TraceEngine)"]
        C4["Component Tree<br>(vp::Component)"]
        C5["Time Engine<br>(vp::TimeEngine)"]

        C1-->C2
        C2-->C3
        C2-->C4
        C2-->C5
    end

    subgraph l4["Layer 4: HAL"]
        D1["RISC-V ISS"]
        D2["Device-specific model<br>(Testbench, I2C, etc.)"]
    end

    A3-->B1
    B1-->C1
    C4--->|"Functional"|D1
    C4--->|"Functional"|D2
    C5-->|"Time"|D1
    C5-->|"Time"|D2

Gvsoc

class Gvsoc: public Io, public Vcd, public Wire, public Power
{
public:
  virtual void open() {}
  virtual void bind(Gvsoc_user *user) {}
  virtual void close() {}
  virtual void start() {}
  virtual void run() {}
  virtual int64_t stop() { return 0; }
  virtual void terminate() {}
  virtual void quit(int status) {}
  virtual void update(int64_t timestamp) {}
  virtual void step(int64_t duration, bool wait=false, void *data=NULL) {}
  virtual void step_until(int64_t duration, bool wait=false, void *data=NULL) {}
  virtual int join() { return 0; }
  virtual void flush() {}
  virtual void *get_component(std::string path) { return NULL; }
  virtual void lock() {}
  virtual void unlock() {}
  virtual void wait_runnable() {}
  virtual int64_t get_time() { return -1; }
  virtual int64_t get_next_event_time() { return -1 ;}
};

Block component

class Component: public Block
{
  friend class vp::BlockClock;
  friend class vp::BlockPower;
  friend class vp::PowerSource;
  friend class vp::MasterPort;
  friend class vp::Top;
  friend class vp::TimeEngine;
  friend class gv::Controller;

public:
  void new_master_port(std::string name, vp::MasterPort *port, vp::Block *comp=NULL);
  void new_slave_port(std::string name, SlavePort *port, void *comp=NULL);
  js::Config *get_js_config() { return js_config; }
  gv::Controller *get_launcher();

private:
  int build_all();
  void unbuild_all();

  static vp::Component *load_component(
    js::Config *config,
    js::Config *gv_config,
    vp::Component *parent,
    std::string name,
    vp::TimeEngine *time_engine,
    vp::TraceEngine *trace_engine,
    vp::PowerEngine *power_engine,
    vp::MemCheck *memcheck
  );

  void set_launcher(gv::Controller *launcher);
  std::map<std::string, Component *> childs_dict;
  bool is_component() { return true; }

  void create_comps();
  void create_ports();
  void create_bindings();
  void bind_comps();
  void final_bind();
  vp::Port *get_port(std::string name);
  void add_port(std::string name, vp::Port *port);
  std::map<std::string, vp::Component *> get_childs_dict() { return childs_dict; }
  static std::string get_module_path(js::Config *gv_config, std::string relpath);
  void add_child(std::string name, vp::Component *child);

  vp::Component *new_component(std::string name, js::Config *config, std::string module="");
  static void clk_reg(vp::Component *_this, vp::Component *clock);
  static void clk_set_frequency(vp::Component *_this, int64_t frequency);

  static void power_supply_sync(vp::Block *_this, int state);
  static void voltage_sync(vp::Block *_this, int voltage);
  static void reset_sync(vp::Block *_this, bool active);

  std::string name;
  vp::Component *parent;
  js::Config *js_config;
  js::Config *gv_config;
  std::unordered_map<std::string, vp::Port *> ports;
  gv::Controller *launcher;
  vp::WireSlave<bool> reset_port;
  vp::WireSlave<int> power_port;
  vp::WireSlave<int> voltage_port;
  vp::ClkSlave clock_port;
  std::vector<vp::Component *> child_components;
};

Register

template<class T>
class Register
{
private:
  T value;
protected:
  T reset_val;
  T write_mask = -1;
public:
  Register(Block &parent, std::string name, int width, bool do_reset=false, T reset_val=0) {}
  T get() const { return this->value; }
  void set(T value);


}
